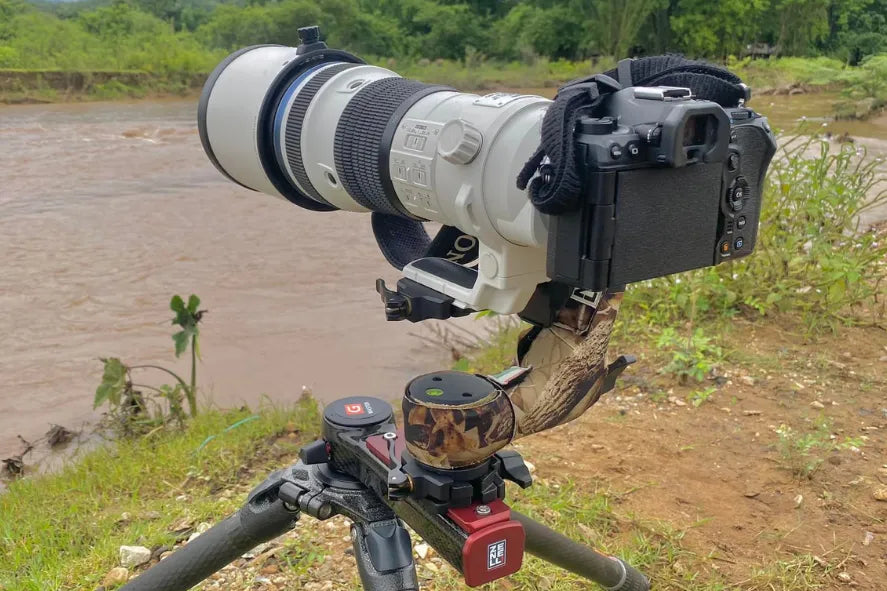

Zenelli Carbon ZB: Carbon Fiber Extender for Gimbal and Tripod Head Positioning
Sometimes the limitation of a camera support system is not its load capacity or rigidity, but its geometry.
With telephoto lenses, gimbal heads and other support configurations, the position of the equipment relative to the tripod can determine whether the complete system can be arranged as required.
The Zenelli Carbon ZB is a carbon fiber extender designed to create additional positioning possibilities between the tripod and the head, allowing the support geometry to be adapted to specific photographic setups.
What Is a Tripod Head Extender?
A tripod head extender introduces an additional structural element between components of the support system.
Its purpose is to move the mounting position away from the tripod's original axis when a standard configuration does not provide the required geometry.
This can be useful when a gimbal head, ball head or other support needs to be offset or repositioned relative to the tripod.
Rather than changing the function of the head itself, the extender changes where that head is positioned within the complete system.
Why Support Geometry Matters
Every component in a photographic support system occupies a specific position.
The tripod establishes the foundation. The head defines how the equipment can move. The lens foot or plate determines where the camera and lens connect to that head.
In some configurations, these geometries do not naturally place the equipment where the photographer needs it.
An extender introduces another degree of positioning freedom, making it possible to create configurations that would otherwise be difficult with a direct tripod-to-head connection.
Extending the Position of a Gimbal Head
A gimbal works most effectively when the camera and lens can be correctly positioned relative to its axes of movement.
The normal balance adjustments of the gimbal remain responsible for positioning the camera and lens within the head.
The Carbon ZB performs a different function.
It changes the position of the complete gimbal relative to the tripod, providing additional freedom when the required setup cannot be achieved conveniently with the head mounted directly above the tripod.
This distinction is important: the ZB complements the adjustment range of the gimbal rather than replacing it.
Offset Positioning
Offsetting a tripod head can be useful for specialized camera configurations or situations where additional clearance is required.
By moving the mounting point away from the tripod's central axis, the Carbon ZB allows the photographer to modify the spatial relationship between the head, tripod and mounted equipment.
The appropriate configuration depends on the equipment being used and the intended movement.
Because an offset also changes how loads are transferred into the tripod, the complete setup should always be evaluated for stability before use.
Carbon Fiber Structure
The Carbon ZB uses carbon fiber as its primary structural material.
For an extender, this is particularly relevant because the component increases the distance between mechanical interfaces and therefore needs sufficient rigidity while avoiding unnecessary additional mass.
Carbon fiber offers high stiffness-to-weight potential when the laminate and geometry are designed appropriately for the application.
As with any composite component, the behaviour of the ZB depends on the complete structure rather than on the material name alone.
Rigidity Becomes More Important with an Extender
Moving a load away from its original mounting axis changes the forces acting on the support system.
As the distance between the load and the support increases, bending moments can increase.
For this reason, an extender cannot be evaluated simply by asking how much weight it can carry.
Its length, cross-section, mounting interfaces, structural rigidity and the position of the equipment all influence the behaviour of the complete assembly.
The tripod underneath the system also becomes increasingly important as the equipment is moved away from its central axis.
Extenders and Panoramic Positioning
The Carbon ZB can also be used where repositioning the head is useful for a particular panoramic or rotational configuration.
However, an extender does not automatically create a parallax-free panoramic setup.
For precise panoramic photography, the relevant rotational axis must be positioned according to the optical geometry of the specific camera and lens combination.
The ZB provides additional positioning capability that can help construct such a setup when combined with the appropriate head and adjustment system.
More Positioning Freedom, Not Automatic Balance
An extender should not be confused with the balance adjustments of a gimbal head.
Correct gimbal balance still requires the camera and lens to be positioned according to their center of gravity, including longitudinal and vertical adjustment where applicable.
The ZB changes the geometry of the support underneath the head.
Its value lies in providing additional positioning freedom when the standard mounting arrangement does not suit the required configuration.
Part of a Complete Support System
The Carbon ZB operates between other structural components, so every connection matters.
Tripod, extender, head, clamp, lens foot and photographic equipment form a single mechanical chain.
When the ZB is used to create an offset configuration, the photographer should consider not only the load itself but also its position relative to the tripod.
A stable configuration depends on the complete system, including the tripod stance and the location of the combined center of gravity.
Additional Geometry When the Standard Setup Is Not Enough
The Carbon ZB is not intended to make every photographic setup more complex.
Its purpose is to solve situations where additional positioning freedom is genuinely required.
By introducing an extended or offset mounting position, it allows compatible heads and photographic equipment to be arranged in configurations that cannot be achieved as easily with a conventional direct mounting arrangement.
The Zenelli Carbon ZB is a lightweight carbon fiber extender designed to provide additional positioning freedom between the tripod and head, allowing photographers to adapt the geometry of the support system to specialized gimbal, offset and panoramic configurations.
